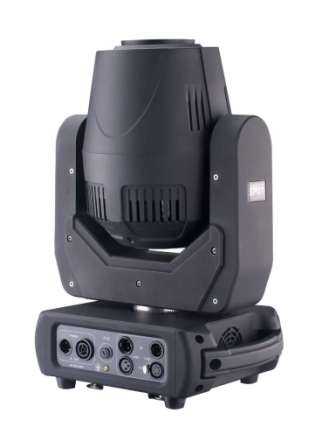

Dragon Spot 200w

Dragon Spot 200w

Dragon Spot 200w

200w White LED

Price: Inquiry Now

Inquiry:

  • Share this:
  • Related Resources: Catalog

Description

FEATURES

200W White Solid State LED Spot
Front 24x0.5w RGB LEDs background effects
16° Beam, 8 Dichroic Colors
6 Rotating-Interchangeable Glass Gobos +Open
7 static gobo+ open
3-Facet Rotating Prisms ( 2 direction)
3 Phase motor on Pan/Tilt
High Speed Mechanical Shutter and Strobe
Motorized Focus and Variable Dimming Curves
Flicker Free Operation For Broadcast TV and FILM

ELECTRICAL / THERMAL
Voltage: AC90-240V, 50/60HZ
Power Consumption: 315W Max

SOURCE
200W Solid State Cool White LED Engine
50,000 Hour Average LED Life
LUX17525@5M at White light

Colors and Gobos
7 Dichroic Colors + Open
GOBOS ( 2 gobo wheel)
6 Interchangeable-Rotating / Indexing Glass Gobos + Open
7 Dichroic gobo+ open

EFFECTS
3-Facet Rotating Prisms and Prism Macros
MotorizedFocus
High Speed Mechanical Shutter and Strobe
Variable Dimming Curves

CONTROL / CONNECTIONS
19/17 DMX Channels

Structure
4 Button Touch Control Panel
Full Color LCD Menu Display
3 Phase Motor on Pan/Tilt ( Ultra Fast ,precise silent movement)
1/4 turn fastening Omega Clamps
8 / 16 Bit Resolution Adjustable Movement
3pin / 5pin DMX In/Out
powerCON In

APPROVALS / RATINGS
FCC| CE | ROHS | IP20

SIZE / WEIGHT
Dimensions: 328(L)*220(W)*482(H)mm
Packing size: 365(L)*290(W)*600(H)mm
Net Weight: 12.50kg,Gross Weight: 15.50kg
