Flex Pro 500x1000
Excellent design for XR, studio, stage, concert etc. Function box design
19.7"x39.4" (500x1000mm) 30lbs(13.8kg)
Suitable for P1.953, P2.604, P2.976, P3.91 indoor/outdoor
Pixel Pitch Pixels LED Type Scan Way Brightness Indoor P1.953 256x512 SMD1515 1/32 ≥1200 Nit P2.604 192x384 SMD1515 1/32 ≥1300 Nit P2.976 168x336 SMD2121 1/28 ≥1300 Nit P3.91 128x256 SMD2121 1/16 ≥1400 Nit Outdoor P2.604 192x384 SMD1415 1/32 ≥4500 Nit P2.976 168x336 SMD1415 1/28 ≥4500 Nit P3.91 128x256 SMD1921 1/16 ≥5000 Nit
7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Tour Pro Carbon Fiber 500x1000/500x500mm
Made by Carbon Fiber Material
Very great for big event, light weight, anti wind design. the back truss can connect together with the panel easily
Size:
500 x 1000 x 76mm (19.7"x39.4"x3"). weigh only 9ka/20lbs
500 x 500 x 76mm (19.7"x19.7"x3"). weigh only 6kg/13.2lbs
The slim desian, along with excellent frame and dollyoptions,can help you save on shipping and labor costs.
Pixel picture
Pixel Pitch Pixels LED Type Scan Way Brightness Indoor P1.953 256x512 SMD1515 1/16 or 1/32 ≥1200 Nit P2.604 192x384 SMD1515 1/32 ≥1300 Nit P2.976 168x336 SMD2121 1/28 ≥1300 Nit P3.91 128x256 SMD2121 1/16 ≥1400 Nit Outdoor P2.604 192x384 SMD1415 1/32 ≥4500 Nit P2.976 168x336 SMD1415 1/21 ≥4500 Nit P3.91 128x256 SMD1921 1/16 ≥4500 Nit
>=3,840Hz to 7680hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Full Flex
Full Flex,Free smooth Curve, S shape, ±45° maxium angle
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P1.953, P2.604, P2.976, P3.91 indoor/outdoor
Pixel Pitch Pixels LED Type Scan Way Brightness Indoor P1.953 256x256 SMD1515 1/32 ≥1200 Nit P2.604 192x192 SMD1515 1/32 ≥1300 Nit P2.976 168x168 SMD2121 1/28 ≥1300 Nit P3.91 128x128 SMD2121 1/16 ≥1400 Nit Outdoor P2.604 192x192 SMD1415 1/32 ≥4500 Nit P2.976 168x168 SMD1415 1/28 ≥4500 Nit P3.91 128x128 SMD1921 1/16 ≥5000 Nit
7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out

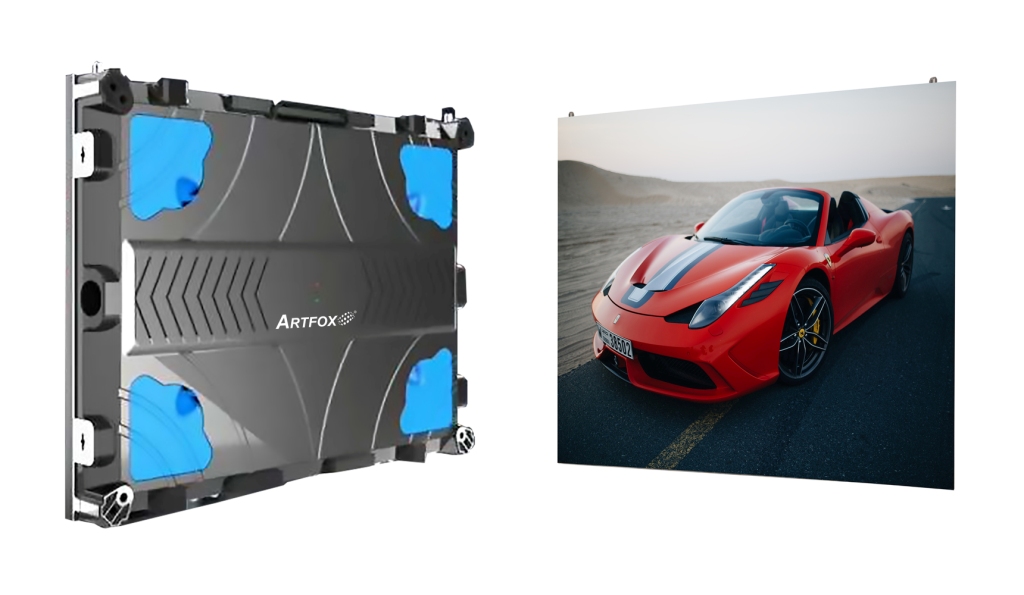

Xpo P2/P2.5/P4
25.2"x18.9" (640x480mm) l5bs(7kg)
4:3 Ratio
Suitable for P2/P2.5/P4 fixed installed on wall
Can hanging on the truss or put on the floor too
Front Service
Pixel Pitch Pixels LED Type Scan Way Brightness P2 320x240 SMD1515 1/32 ≥1200 Nit P2.5 256x192 SMD1515 1/16 ≥1200 Nit P4 160x120 SMD2121 1/16 ≥1200 Nit
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level

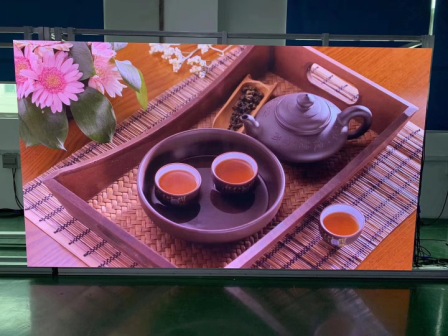

Xtreme HD COB
23.6x13.3x1.6" (600x337.5x40mm) 8.8 lbs(4kg)
16:9 Ratio
P0.78 P0.93 P1.25 P1.56 P1.87 COB
Front Service
Module Size: 150x168.75mm
Each panel 8 modules
Max Power: 80w each panel
Pixel Pitch Module Pixels Panel pixels IP Rate ScanWay Brightness P0.78 192x216 768x432 IP54 1/48 ≥800 Nit P0.93 160x180 640x360 IP54 1/54 ≥700 Nit P1.25 120x135 480x270 IP54 1/60 ≥700 Nit P1.56 96x108 384x216 IP54 1/54 ≥700 Nit P1.87 80x90 320x180 IP54 1/40 ≥700 Nit
>=3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Smart Pro - P2.9/P3.9 Indoor 500x1000
19.7"x39.4" (500x1000mm) 30lbs(13.8kg)
Suitable for P2.976, P3.91,P4.81 indoor/outdoor
Pixel Pitch Pixels LED Type Scan Way Brightness Indoor P2.976 168x336 SMD2121 1/28 ≥1300 Nit P3.91 128x256 SMD2121 1/16 ≥1400 Nit P4.81 104x208 SMD2121 1/13 ≥1500 Nit Outdoor P2.976 168x336 SMD1415 1/28 ≥4500 Nit P3.91 128x256 SMD1921 1/16 ≥5000 Nit P4.81 104x208 SMD2727 1/13 ≥6000 Nit
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Flex Pro 500x500
Excellent design for XR, studio, stage, concert etc. 2022 New Design.
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P1.953, P2.604, P2.976, P3.91 indoor/outdoor
Pixel Pitch Pixels LED Type Scan Way Brightness Indoor P1.953 256x256 SMD1515 1/32 ≥1200 Nit P2.604 192x192 SMD1515 1/32 ≥1300 Nit P2.976 168x168 SMD2121 1/28 ≥1300 Nit P3.91 128x128 SMD2121 1/16 ≥1400 Nit Outdoor P2.604 192x192 SMD1415 1/32 ≥4500 Nit P2.976 168x168 SMD1415 1/28 ≥4500 Nit P3.91 128x128 SMD1921 1/16 ≥5000 Nit
7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Smart Pro 500x500 - P3.91/P2.976/P2.6
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P2.6, P2.976, P3.91,P4.81,P5.95 indoor/outdoor, curve
Pixel Pitch Pixels LED Type Scan Way Brightness Indoor P2.6 192x192 SMD1515 1/32 ≥1400 Nit P2.976 168x168 SMD2121 1/28 ≥1200 Nit P3.91 128x128 SMD2121 1/16 ≥1400 Nit P4.81 104x104 SMD2121 1/8 ≥1200 Nit P5.95 84x84 SMD3528 1/7 ≥1400 Nit Outdoor P3.91 128x128 SMD1921 1/16 ≥6000 Nit P4.81 104x104 SMD2727 1/13 ≥6000 Nit P5.95 84x84 SMD3535 1/7 ≥6500 Nit
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Transparent LED screen, Blinds LED Screen
39.4"x19.7"x3.1" (1000x500mmx8mm) 12.7 lbs(5.8kg)
Suitable for w: P3.91, Height: P7.82 indoor outdoor
Module size: 125x500mm
Width Pixel Pitch Height Pixels Pitch Pixels LED Type Scan Way Brightness P3.91 P7.82 256x64 SMD1921 1/8 4500 nit outdoor use P3.91 P7.82 256x64 SMD2121 1/8 1200 nit indoor use
Power cosumption: Maxium 300w
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Glass Paster Transparent Screen, Soft module
Holographic projection
Installation:
1. Paste on Glass
2. Put in a frame
3. Hanging
Soft design, you can do very creative design
Size: 9.45"x39.4" (240x1000mm)
Thickness: 3mm
weight: 1.8 lbs (0.84kg)
Pixel pitch: P4, P5, P6, P8, P10, P16, P20, P30
System: Novastar
Refresh rate >=3840-7680hz
Grey level: 16 bit
Pixel pitchPixel Pitch Pixels LED Type Brightness Transparency P4 60x250 SMD2121 ≥1200 95% P5 48x200 SMD2121 ≥2500 95% P6 40x166 SMD2121 ≥3000 95% P8 30x125 SMD2121 ≥3000 95% P10 24x100 SMD2121 ≥3000 95%
Auto free voltage 100v-240v Power Supply
Power consumption: 96w Maxium, 50w Averagely
input: 100-240v 50/60hz AC
IP rate: IP30
Net Transparent screen, Soft module
Holographic projection, Black PCB make it high contract
Installation:
1. Paste on Glass
2. Put in a frame
3. Hanging
Soft design, you can do very creative design
Size: 9.84"x39.4" (250x1000mm)
Thickness: 3mm
weight: 2.2 lbs (0.98kg)
Pixel pitch: P3.91, P6.25
System: Novastar
Refresh rate >=3840-7680hz
Grey level: 16 bit
Pixel pitch
Pixel Pitch Pixels LED Type Brightness Transparency P3.91 64x256 SMD2121 ≥1200 85% P6.25 40x160 SMD2121 ≥1500 85%
Auto free voltage 100v-240v Power Supply
Power consumption: 100w Maxium, 60w Averagely
input: 100-240v 50/60hz AC
IP rate: IP30

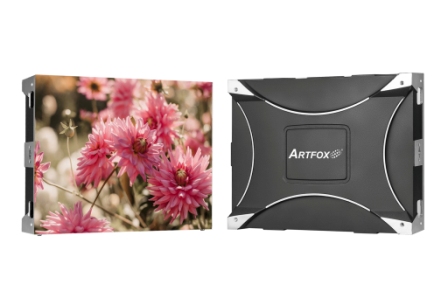

Xtreme P1.25/P1.56/P1.667/P1.875 SMD/COB/GOB
23.6"x13.3" (600x337.5mm) 11lbs(5kg)
16:9 Ratio
Suitable for P1.25/P1.56/P1.667/P1.875 fixed installed on wall
Can hanging on the truss or put on the floor too
Front Service
Pixel Pitch Pixels LED Type Scan Way Brightness P1.25 480x270 SMD1010 1/30 ≥1000 Nit P1.56 384x216 SMD1010 1/32 ≥1000 Nit P1.667 360x202 SMD1515 1/32 ≥1000 Nit P1.875 320x180 SMD1515 1/30 ≥1000 Nit
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Hub Design
Hybrid P2.6/2.9/3.9
Corner 45 degrees/Straight/Curved 15 degrees/Magic Cube, All IN 1
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P2.6, P2.976, P3.91,P4.81,P5.95 indoor/outdoor, curve
Pixel Pitch Pixels LED Type Scan Way Brightness Indoor P2.6 192x192 SMD1515 1/32 ≥1400 Nit P2.976 168x168 SMD2121 1/28 ≥1200 Nit P3.91 128x128 SMD2121 1/16 ≥1400 Nit P4.81 104x104 SMD2121 1/8 ≥1200 Nit P5.95 84x84 SMD3528 1/7 ≥1400 Nit Outdoor P3.91 128x128 SMD1921 1/16 ≥6000 Nit P4.81 104x104 SMD2727 1/13 ≥6000 Nit P5.95 84x84 SMD3535 1/7 ≥6500 Nit
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
WallX P2.6/P2.976/P3.91
Suitable for P2.6/P2.976/P3.91, excellent for wall mounted installed
Feature
Flexiable size:
Size Weight 39.4"x19.7" (1000x500mm) 26.4lbs( 12kg) 39.4"x9.85" (1000x250mm) 13.5lbs (6.2kg) 29.6"x9.85" (750x250mm) 10.5lbs( 4.8kg) 19.7"x19.7" (500x500mm) 13.5 lbs( 6.2 kg)
Flexiable Angle: 0-45 degree
Pixel Pitch Pixels LED Type Scan Way Brightness P2.6 384x192 SMD1515 1/16 ≥1200 Nit P2.976 336x168 SMD2121 1/28 ≥1300 Nit P3.91 256x128 SMD2121 1/16 ≥1400 Nit
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Snap P2.6/2.9/3.9
Front and Rear Maintainess, no screwer and maginet, new Technology
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P2.6, P2.976, P3.91,P4.81,P5.95 indoor/outdoor,
Pixel Pitch Pixels LED Type Scan Way Brightness Indoor P2.6 192x192 SMD1515 1/32 ≥1400 Nit P2.976 168x168 SMD2121 1/28 ≥1200 Nit P3.91 128x128 SMD2121 1/16 ≥1400 Nit P4.81 104x104 SMD2121 1/8 ≥1200 Nit P5.95 84x84 SMD3528 1/7 ≥1400 Nit Outdoor P3.91 128x128 SMD1921 1/16 ≥6000 Nit P4.81 104x104 SMD2727 1/13 ≥6000 Nit P5.95 84x84 SMD3535 1/7 ≥6500 Nit
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
LED Sphere, Soft screen customized any design - Soft module
iFlex for any irregular shaped screens
Concave, convex, round, column, S shaped
Front Service with Magnetic Module
Light, thin, easy installation, plug and play
Design without Limitation
Pixel Pitch Pixels LED Type Scan Way Brightness P1.875 128x64 SMD1010 1/32 ≥1000 Nit P2 120x60 SMD1515 1/30 ≥1000 Nit P2.5 96x48 SMD1515 1/24 ≥1000 Nit P3 80x40 SMD2121 1/20 ≥1000 Nit P4 60x30 SMD2121 1/15 ≥1000 Nit
Module Size: 240x120mm / 0.79x0.39ft
Cabinet Dimension: Customized, Concave, Convex, Round, Column, S shaped
Service Access Front Magnet
Refresh Rate: >=3,840hz
Grey Scale: 16bit
Viewing Angle (H/V): -140 to 140 degree
LED Poster COB P0.78/P0.93/P1.25/P1.56/P1.875 - Cloud Screen
LED COB poster is new design, it is cambined by 5pcs or 6pcs Xtreme COB LED screen
5pcs array = 600x1687.5mm = 2x5.5ft = 71 inches, 135lbs
6pcs array = 600x2025mm = 2x6.6ft = 83.2 inches, 155lbs
Features:
COB technology
Connectable
Pixel Pitch Module Pixels pixels(5 array) Size(5 array) pixels(6 array) Size(6 array) P0.78 192x216 768x2160 2x5.5ft = 71 inches 768x2592 2x6.6ft = 83.2 inches P0.93 160x180 640x1800 2x5.5ft = 71 inches 640x2160 2x6.6ft = 83.2 inches P1.25 120x135 480x1350 2x5.5ft = 71 inches 480x1620 2x6.6ft = 83.2 inches P1.56 96x108 384x1080 2x5.5ft = 71 inches 384x1296 2x6.6ft = 83.2 inches P1.87 80x90 320x900 2x5.5ft = 71 inches 320x1080 2x6.6ft = 83.2 inches
3840-7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Flex Pro 500x1000
Excellent design for XR, studio, stage, concert etc. Function box design
19.7"x39.4" (500x1000mm) 30lbs(13.8kg)
Suitable for P1.953, P2.604, P2.976, P3.91 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P1.953 | 256x512 | SMD1515 | 1/32 | ≥1200 Nit |
| P2.604 | 192x384 | SMD1515 | 1/32 | ≥1300 Nit | |
| P2.976 | 168x336 | SMD2121 | 1/28 | ≥1300 Nit | |
| P3.91 | 128x256 | SMD2121 | 1/16 | ≥1400 Nit | |
| Outdoor | P2.604 | 192x384 | SMD1415 | 1/32 | ≥4500 Nit |
| P2.976 | 168x336 | SMD1415 | 1/28 | ≥4500 Nit | |
| P3.91 | 128x256 | SMD1921 | 1/16 | ≥5000 Nit |
7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Tour Pro Carbon Fiber 500x1000/500x500mm
Made by Carbon Fiber Material
Very great for big event, light weight, anti wind design. the back truss can connect together with the panel easily
Size:
500 x 1000 x 76mm (19.7"x39.4"x3"). weigh only 9ka/20lbs
500 x 500 x 76mm (19.7"x19.7"x3"). weigh only 6kg/13.2lbs
The slim desian, along with excellent frame and dollyoptions,can help you save on shipping and labor costs.
Pixel picture
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P1.953 | 256x512 | SMD1515 | 1/16 or 1/32 | ≥1200 Nit |
| P2.604 | 192x384 | SMD1515 | 1/32 | ≥1300 Nit | |
| P2.976 | 168x336 | SMD2121 | 1/28 | ≥1300 Nit | |
| P3.91 | 128x256 | SMD2121 | 1/16 | ≥1400 Nit | |
| Outdoor | P2.604 | 192x384 | SMD1415 | 1/32 | ≥4500 Nit |
| P2.976 | 168x336 | SMD1415 | 1/21 | ≥4500 Nit | |
| P3.91 | 128x256 | SMD1921 | 1/16 | ≥4500 Nit |
>=3,840Hz to 7680hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Full Flex
Full Flex,Free smooth Curve, S shape, ±45° maxium angle
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P1.953, P2.604, P2.976, P3.91 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P1.953 | 256x256 | SMD1515 | 1/32 | ≥1200 Nit |
| P2.604 | 192x192 | SMD1515 | 1/32 | ≥1300 Nit | |
| P2.976 | 168x168 | SMD2121 | 1/28 | ≥1300 Nit | |
| P3.91 | 128x128 | SMD2121 | 1/16 | ≥1400 Nit | |
| Outdoor | P2.604 | 192x192 | SMD1415 | 1/32 | ≥4500 Nit |
| P2.976 | 168x168 | SMD1415 | 1/28 | ≥4500 Nit | |
| P3.91 | 128x128 | SMD1921 | 1/16 | ≥5000 Nit |
7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Xpo P2/P2.5/P4
25.2"x18.9" (640x480mm) l5bs(7kg)
4:3 Ratio
Suitable for P2/P2.5/P4 fixed installed on wall
Can hanging on the truss or put on the floor too
Front Service
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness |
| P2 | 320x240 | SMD1515 | 1/32 | ≥1200 Nit |
| P2.5 | 256x192 | SMD1515 | 1/16 | ≥1200 Nit |
| P4 | 160x120 | SMD2121 | 1/16 | ≥1200 Nit |
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Xtreme HD COB
23.6x13.3x1.6" (600x337.5x40mm) 8.8 lbs(4kg)
16:9 Ratio
P0.78 P0.93 P1.25 P1.56 P1.87 COB
Front Service
Module Size: 150x168.75mm
Each panel 8 modules
Max Power: 80w each panel
| Pixel Pitch | Module Pixels | Panel pixels | IP Rate | ScanWay | Brightness |
| P0.78 | 192x216 | 768x432 | IP54 | 1/48 | ≥800 Nit |
| P0.93 | 160x180 | 640x360 | IP54 | 1/54 | ≥700 Nit |
| P1.25 | 120x135 | 480x270 | IP54 | 1/60 | ≥700 Nit |
| P1.56 | 96x108 | 384x216 | IP54 | 1/54 | ≥700 Nit |
| P1.87 | 80x90 | 320x180 | IP54 | 1/40 | ≥700 Nit |
>=3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Smart Pro - P2.9/P3.9 Indoor 500x1000
19.7"x39.4" (500x1000mm) 30lbs(13.8kg)
Suitable for P2.976, P3.91,P4.81 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P2.976 | 168x336 | SMD2121 | 1/28 | ≥1300 Nit |
| P3.91 | 128x256 | SMD2121 | 1/16 | ≥1400 Nit | |
| P4.81 | 104x208 | SMD2121 | 1/13 | ≥1500 Nit | |
| Outdoor | P2.976 | 168x336 | SMD1415 | 1/28 | ≥4500 Nit |
| P3.91 | 128x256 | SMD1921 | 1/16 | ≥5000 Nit | |
| P4.81 | 104x208 | SMD2727 | 1/13 | ≥6000 Nit |
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Flex Pro 500x500
Excellent design for XR, studio, stage, concert etc. 2022 New Design.
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P1.953, P2.604, P2.976, P3.91 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P1.953 | 256x256 | SMD1515 | 1/32 | ≥1200 Nit |
| P2.604 | 192x192 | SMD1515 | 1/32 | ≥1300 Nit | |
| P2.976 | 168x168 | SMD2121 | 1/28 | ≥1300 Nit | |
| P3.91 | 128x128 | SMD2121 | 1/16 | ≥1400 Nit | |
| Outdoor | P2.604 | 192x192 | SMD1415 | 1/32 | ≥4500 Nit |
| P2.976 | 168x168 | SMD1415 | 1/28 | ≥4500 Nit | |
| P3.91 | 128x128 | SMD1921 | 1/16 | ≥5000 Nit |
7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Smart Pro 500x500 - P3.91/P2.976/P2.6
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P2.6, P2.976, P3.91,P4.81,P5.95 indoor/outdoor, curve
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P2.6 | 192x192 | SMD1515 | 1/32 | ≥1400 Nit |
| P2.976 | 168x168 | SMD2121 | 1/28 | ≥1200 Nit | |
| P3.91 | 128x128 | SMD2121 | 1/16 | ≥1400 Nit | |
| P4.81 | 104x104 | SMD2121 | 1/8 | ≥1200 Nit | |
| P5.95 | 84x84 | SMD3528 | 1/7 | ≥1400 Nit | |
| Outdoor | P3.91 | 128x128 | SMD1921 | 1/16 | ≥6000 Nit |
| P4.81 | 104x104 | SMD2727 | 1/13 | ≥6000 Nit | |
| P5.95 | 84x84 | SMD3535 | 1/7 | ≥6500 Nit |
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Transparent LED screen, Blinds LED Screen
39.4"x19.7"x3.1" (1000x500mmx8mm) 12.7 lbs(5.8kg)
Suitable for w: P3.91, Height: P7.82 indoor outdoor
Module size: 125x500mm
| Width Pixel Pitch | Height Pixels Pitch | Pixels | LED Type | Scan Way | Brightness |
| P3.91 | P7.82 | 256x64 | SMD1921 | 1/8 | 4500 nit outdoor use |
| P3.91 | P7.82 | 256x64 | SMD2121 | 1/8 | 1200 nit indoor use |
Power cosumption: Maxium 300w
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Glass Paster Transparent Screen, Soft module
Holographic projection
Installation:
1. Paste on Glass
2. Put in a frame
3. Hanging
Soft design, you can do very creative design
Size: 9.45"x39.4" (240x1000mm)
Thickness: 3mm
weight: 1.8 lbs (0.84kg)
Pixel pitch: P4, P5, P6, P8, P10, P16, P20, P30
System: Novastar
Refresh rate >=3840-7680hz
Grey level: 16 bit
Pixel pitch
| Pixel Pitch | Pixels | LED Type | Brightness | Transparency |
| P4 | 60x250 | SMD2121 | ≥1200 | 95% |
| P5 | 48x200 | SMD2121 | ≥2500 | 95% |
| P6 | 40x166 | SMD2121 | ≥3000 | 95% |
| P8 | 30x125 | SMD2121 | ≥3000 | 95% |
| P10 | 24x100 | SMD2121 | ≥3000 | 95% |
Auto free voltage 100v-240v Power Supply
Power consumption: 96w Maxium, 50w Averagely
input: 100-240v 50/60hz AC
IP rate: IP30
Net Transparent screen, Soft module
Holographic projection, Black PCB make it high contract
Installation:
1. Paste on Glass
2. Put in a frame
3. Hanging
Soft design, you can do very creative design
Size: 9.84"x39.4" (250x1000mm)
Thickness: 3mm
weight: 2.2 lbs (0.98kg)
Pixel pitch: P3.91, P6.25
System: Novastar
Refresh rate >=3840-7680hz
Grey level: 16 bit
Pixel pitch
| Pixel Pitch | Pixels | LED Type | Brightness | Transparency |
| P3.91 | 64x256 | SMD2121 | ≥1200 | 85% |
| P6.25 | 40x160 | SMD2121 | ≥1500 | 85% |
Auto free voltage 100v-240v Power Supply
Power consumption: 100w Maxium, 60w Averagely
input: 100-240v 50/60hz AC
IP rate: IP30
Xtreme P1.25/P1.56/P1.667/P1.875 SMD/COB/GOB
23.6"x13.3" (600x337.5mm) 11lbs(5kg)
16:9 Ratio
Suitable for P1.25/P1.56/P1.667/P1.875 fixed installed on wall
Can hanging on the truss or put on the floor too
Front Service
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness |
| P1.25 | 480x270 | SMD1010 | 1/30 | ≥1000 Nit |
| P1.56 | 384x216 | SMD1010 | 1/32 | ≥1000 Nit |
| P1.667 | 360x202 | SMD1515 | 1/32 | ≥1000 Nit |
| P1.875 | 320x180 | SMD1515 | 1/30 | ≥1000 Nit |
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Hub Design
Hybrid P2.6/2.9/3.9
Corner 45 degrees/Straight/Curved 15 degrees/Magic Cube, All IN 1
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P2.6, P2.976, P3.91,P4.81,P5.95 indoor/outdoor, curve
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P2.6 | 192x192 | SMD1515 | 1/32 | ≥1400 Nit |
| P2.976 | 168x168 | SMD2121 | 1/28 | ≥1200 Nit | |
| P3.91 | 128x128 | SMD2121 | 1/16 | ≥1400 Nit | |
| P4.81 | 104x104 | SMD2121 | 1/8 | ≥1200 Nit | |
| P5.95 | 84x84 | SMD3528 | 1/7 | ≥1400 Nit | |
| Outdoor | P3.91 | 128x128 | SMD1921 | 1/16 | ≥6000 Nit |
| P4.81 | 104x104 | SMD2727 | 1/13 | ≥6000 Nit | |
| P5.95 | 84x84 | SMD3535 | 1/7 | ≥6500 Nit |
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
WallX P2.6/P2.976/P3.91
Suitable for P2.6/P2.976/P3.91, excellent for wall mounted installed
Feature
Flexiable size:
| Size | Weight |
| 39.4"x19.7" (1000x500mm) | 26.4lbs( 12kg) |
| 39.4"x9.85" (1000x250mm) | 13.5lbs (6.2kg) |
| 29.6"x9.85" (750x250mm) | 10.5lbs( 4.8kg) |
| 19.7"x19.7" (500x500mm) | 13.5 lbs( 6.2 kg) |
Flexiable Angle: 0-45 degree
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness |
| P2.6 | 384x192 | SMD1515 | 1/16 | ≥1200 Nit |
| P2.976 | 336x168 | SMD2121 | 1/28 | ≥1300 Nit |
| P3.91 | 256x128 | SMD2121 | 1/16 | ≥1400 Nit |
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Snap P2.6/2.9/3.9
Front and Rear Maintainess, no screwer and maginet, new Technology
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P2.6, P2.976, P3.91,P4.81,P5.95 indoor/outdoor,
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P2.6 | 192x192 | SMD1515 | 1/32 | ≥1400 Nit |
| P2.976 | 168x168 | SMD2121 | 1/28 | ≥1200 Nit | |
| P3.91 | 128x128 | SMD2121 | 1/16 | ≥1400 Nit | |
| P4.81 | 104x104 | SMD2121 | 1/8 | ≥1200 Nit | |
| P5.95 | 84x84 | SMD3528 | 1/7 | ≥1400 Nit | |
| Outdoor | P3.91 | 128x128 | SMD1921 | 1/16 | ≥6000 Nit |
| P4.81 | 104x104 | SMD2727 | 1/13 | ≥6000 Nit | |
| P5.95 | 84x84 | SMD3535 | 1/7 | ≥6500 Nit |
≥3,840 to 7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
LED Sphere, Soft screen customized any design - Soft module
iFlex for any irregular shaped screens
Concave, convex, round, column, S shaped
Front Service with Magnetic Module
Light, thin, easy installation, plug and play
Design without Limitation
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness |
| P1.875 | 128x64 | SMD1010 | 1/32 | ≥1000 Nit |
| P2 | 120x60 | SMD1515 | 1/30 | ≥1000 Nit |
| P2.5 | 96x48 | SMD1515 | 1/24 | ≥1000 Nit |
| P3 | 80x40 | SMD2121 | 1/20 | ≥1000 Nit |
| P4 | 60x30 | SMD2121 | 1/15 | ≥1000 Nit |
Module Size: 240x120mm / 0.79x0.39ft
Cabinet Dimension: Customized, Concave, Convex, Round, Column, S shaped
Service Access Front Magnet
Refresh Rate: >=3,840hz
Grey Scale: 16bit
Viewing Angle (H/V): -140 to 140 degree
LED Poster COB P0.78/P0.93/P1.25/P1.56/P1.875 - Cloud Screen
LED COB poster is new design, it is cambined by 5pcs or 6pcs Xtreme COB LED screen
5pcs array = 600x1687.5mm = 2x5.5ft = 71 inches, 135lbs
6pcs array = 600x2025mm = 2x6.6ft = 83.2 inches, 155lbs
Features:
COB technology
Connectable
| Pixel Pitch | Module Pixels | pixels(5 array) | Size(5 array) | pixels(6 array) | Size(6 array) |
| P0.78 | 192x216 | 768x2160 | 2x5.5ft = 71 inches | 768x2592 | 2x6.6ft = 83.2 inches |
| P0.93 | 160x180 | 640x1800 | 2x5.5ft = 71 inches | 640x2160 | 2x6.6ft = 83.2 inches |
| P1.25 | 120x135 | 480x1350 | 2x5.5ft = 71 inches | 480x1620 | 2x6.6ft = 83.2 inches |
| P1.56 | 96x108 | 384x1080 | 2x5.5ft = 71 inches | 384x1296 | 2x6.6ft = 83.2 inches |
| P1.87 | 80x90 | 320x900 | 2x5.5ft = 71 inches | 320x1080 | 2x6.6ft = 83.2 inches |
3840-7680Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Indoor Rental LED Display
Easy P4/P5
37.8x37.8x4.7" (960x960x120mm) 66 lbs(30kg)
indoor/outdoor billboard P4 P5 P6.67
IP65 outdoor
Module Size: 320x160mm
Max Power: 800w each panel
Pixel Pitch Module Pixels Panel Pixels LED Type ScanWay Brightness P4 80x40 240x240 SMD1921 1/8 ≥5000 Nit P5 64x32 192x192 SMD1921 1/8 ≥5000 Nit P6.67 48x24 144x144 SMD3535 1/6 ≥6000 Nit
>=1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Easy P4/P5
37.8x37.8x4.7" (960x960x120mm) 66 lbs(30kg)
indoor/outdoor billboard P4 P5 P6.67
IP65 outdoor
Module Size: 320x160mm
Max Power: 800w each panel
| Pixel Pitch | Module Pixels | Panel Pixels | LED Type | ScanWay | Brightness |
| P4 | 80x40 | 240x240 | SMD1921 | 1/8 | ≥5000 Nit |
| P5 | 64x32 | 192x192 | SMD1921 | 1/8 | ≥5000 Nit |
| P6.67 | 48x24 | 144x144 | SMD3535 | 1/6 | ≥6000 Nit |
>=1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Indoor Fixed LED Display
Outdoor Led screen, BillBoard screen
37.8x37.8x6" (960x960x150mm) 79.2 lbs(36kg)
outdoor billboard P2.5 P3.076 P4 P5 P6.67 P8
IP65 outdoor
Module Size: 320x160mm
Max Power: 950w each panel
Pixel Pitch Module Pixels Panel Pixels LED Type ScanWay Brightness P2.5 128x64 384x384 SMD1415 1/16 ≥4000 Nit P3.076 104x52 312x312 SMD1415 1/13 ≥4200 Nit P4 80x40 240x240 SMD1921 1/10 ≥4500 Nit P5 64x32 192x192 SMD1921 1/8 ≥5000 Nit P6.67 48x24 144x144 SMD3535 1/6 ≥6000 Nit P8 40x20 120x120 SMD3535 1/5 ≥8000 Nit
>=1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Inquiry
We will reply you in 24 hours, and please feel free to call +1-(323)287-5559 or email to sales@artfox.net
Outdoor Led screen, BillBoard screen
37.8x37.8x6" (960x960x150mm) 79.2 lbs(36kg)
outdoor billboard P2.5 P3.076 P4 P5 P6.67 P8
IP65 outdoor
Module Size: 320x160mm
Max Power: 950w each panel
| Pixel Pitch | Module Pixels | Panel Pixels | LED Type | ScanWay | Brightness |
| P2.5 | 128x64 | 384x384 | SMD1415 | 1/16 | ≥4000 Nit |
| P3.076 | 104x52 | 312x312 | SMD1415 | 1/13 | ≥4200 Nit |
| P4 | 80x40 | 240x240 | SMD1921 | 1/10 | ≥4500 Nit |
| P5 | 64x32 | 192x192 | SMD1921 | 1/8 | ≥5000 Nit |
| P6.67 | 48x24 | 144x144 | SMD3535 | 1/6 | ≥6000 Nit |
| P8 | 40x20 | 120x120 | SMD3535 | 1/5 | ≥8000 Nit |
>=1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Inquiry
We will reply you in 24 hours, and please feel free to call +1-(323)287-5559 or email to sales@artfox.net
