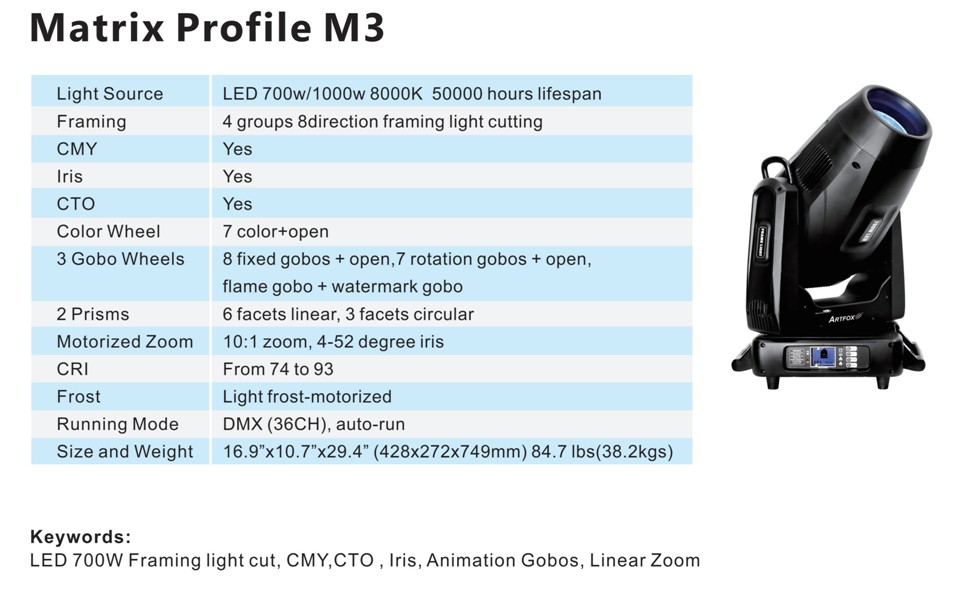

Matrix Profile M3

Matrix Profile M3

Matrix Profile M3

LED 700w lamp, CMY, CTO, Linear zoom 5°-55° degree

Price: Inquiry Now



    LED 700w lamp

    4 groups 8 direction frameing

    CMY, CTO, Iris, Animation gobos

    Linear zoom

    two prisms,3D effects

  • Share this:
  • Related Resources: Catalog

Matrix Profile M3 More Video 1

Matrix Profile M3 More Video 2


Matrix Profile M3 features an advanced, 4-blade shutter frame system with the ability to fully blackout and a 90° rotation. Its precision LED optics feature CMY + CTO color mixing and a fast 10:1 zoom ratio that maintains a flat field of focus even when fully wide. It also has an adjustable CRI from 74 to 91 CRI for use as a key light for broadcasted events.Matrix Profile M3 offers great static, rotating, and animation effects from its 2 gobo wheels (1 rotating, 1 static), animation wheel, 2 independent and overlapping prisms and frost. Control as you see fit with DMX, sACN, Art-Net.

1. An advanced 700W led moving head head profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, a CRI filter, animation wheel, a 10:1 zoom, two independently layerable prisms, frosts, a static and a rotating gobo wheel
2. 16-bit dimming of master dimmer for smooth control of fades
3. Variable CMY + CTO color mixing system to create a wide pallet of colors
4. Independently layerable 6 facet linear and 3- facet round prisms for increased prism options
5.One rotating and one static gobo wheel for dynamic texture possibilities
6. Independent light and medium frosts for beam control
7.+ or – 60 degree rotation framing shutter system to allow for better framing positioning.
8. Animation wheel for enhanced visual effects
9. Iris for total beam control
10. RDM control over DMX for fixture reporting
11. 5° to 50° zoom angle for variable beam sizes


1 LEDs (CW) 700 W, 8,000K
50,000 hours life expectancy
W / Filter: 91
TLCI: 50.9

Beam Angle: 5.° to 50°
Field Angle: 7.6° to 61.4°
Framing Shutters: Yes
Prism 1: 6 linear facets, motorized, rotating
Prism 2: 3 Circular facets, motorized, rotating

Colors: 7 + white, split colors, continuous scroll at variable speeds
Colors: Variable CMY flags, CTO flag, CRI filter, color correction,
Color Temperature (at full): 7,800 K
Gobos (1): 6 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Static Gobos (2): 8 + open (9 glass), continuous scroll at variable speeds
1 animation wheel

4-blade shutter frame ,Profile, 90° rotation
Variable CMY + CTO color mixing system
1 Color Wheel
2 gobo wheels (1 rotating, 1 static)
1 animation wheel
Prism: 6 linear facets, motorized, rotating
Prism: 3 Circular facets, motorized, rotating
Motorized Zoom,10:1 zoom. 4-52 degree
CRI from 74 to 93 CRI
Frost 1: Light Frost - Motorized
Data Connectors: 3- and 5-pin XLR in/out
XLR Net RJ45 connectors in/out
Control Protocol: Art-Net, DMX,, sACN
DMX Channels: 36chs
Power Connection:Powercon in/out
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Max. Power and Current: 1,000 W, 10.34 A @ 120 V, 60 Hz

Vertical Height:29.4''(749mm)
IP 20
