Description

Features

• 260W Laser-Based High-Power Beam Light


• IP65 Dust & Water Protection for Outdoor Use


• 16-Color Wheel + CMYK Color Mixing System


• 29 Static Metal Gobos (6 Colorful Glass Gobos Included) + Shaking Effect


• Prism wheel1: 3-Facet colorful, 6+12-Facet, 24-Facet Rotatable Prisms


• Prism wheel2: 8-Facet, 8+8+8-Facet + Independent Frost Filter


• 0.8° Ultra-Narrow Beam Angel with Electronic Focus


• 0-100% Mechanical Dimmer + 5-11Hz Mechanical Strobe

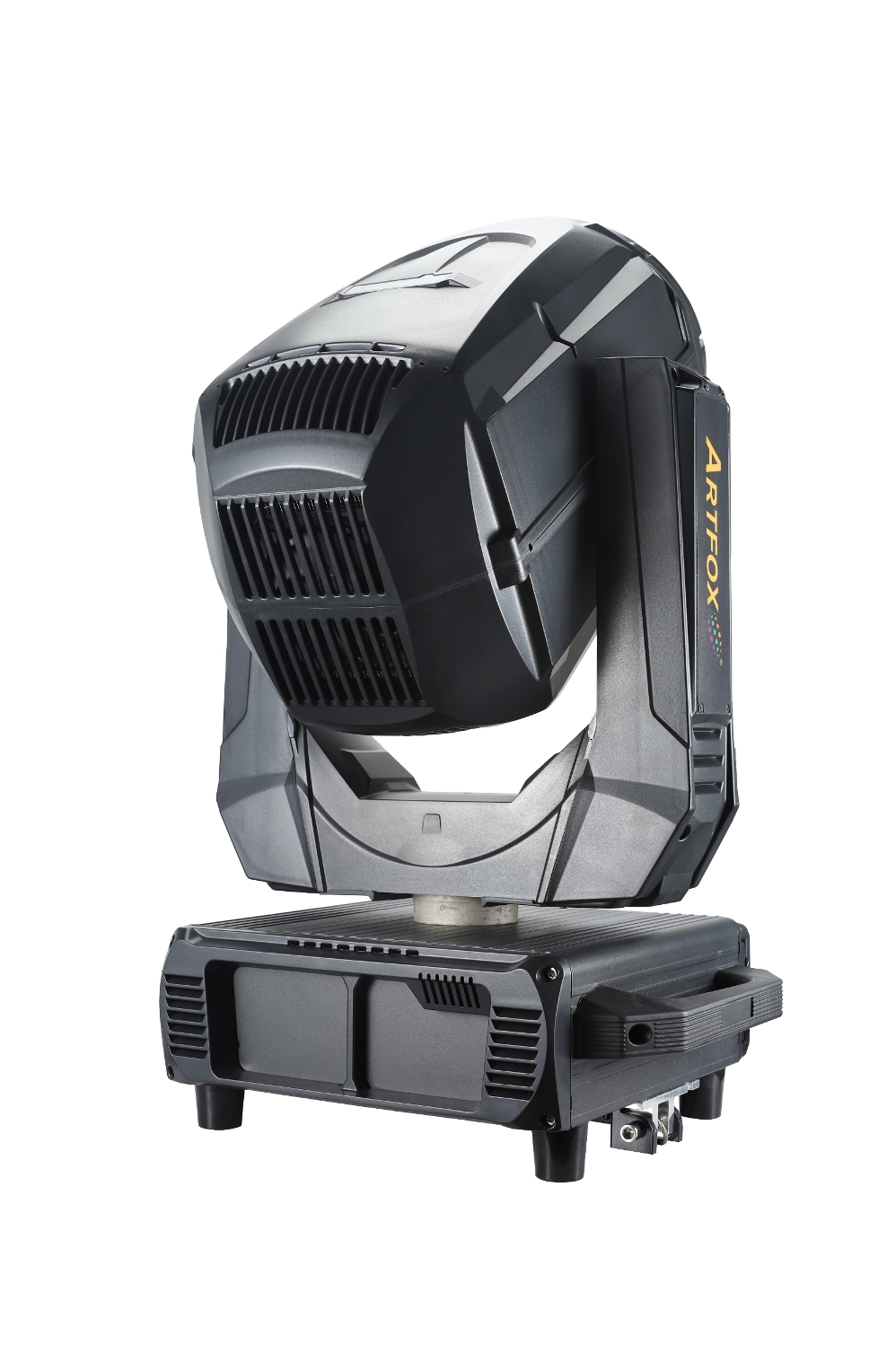

• Intelligent Temperature-Controlled Fan


• Integrated Folding Clamp & Pan/Tilt Lock

Description

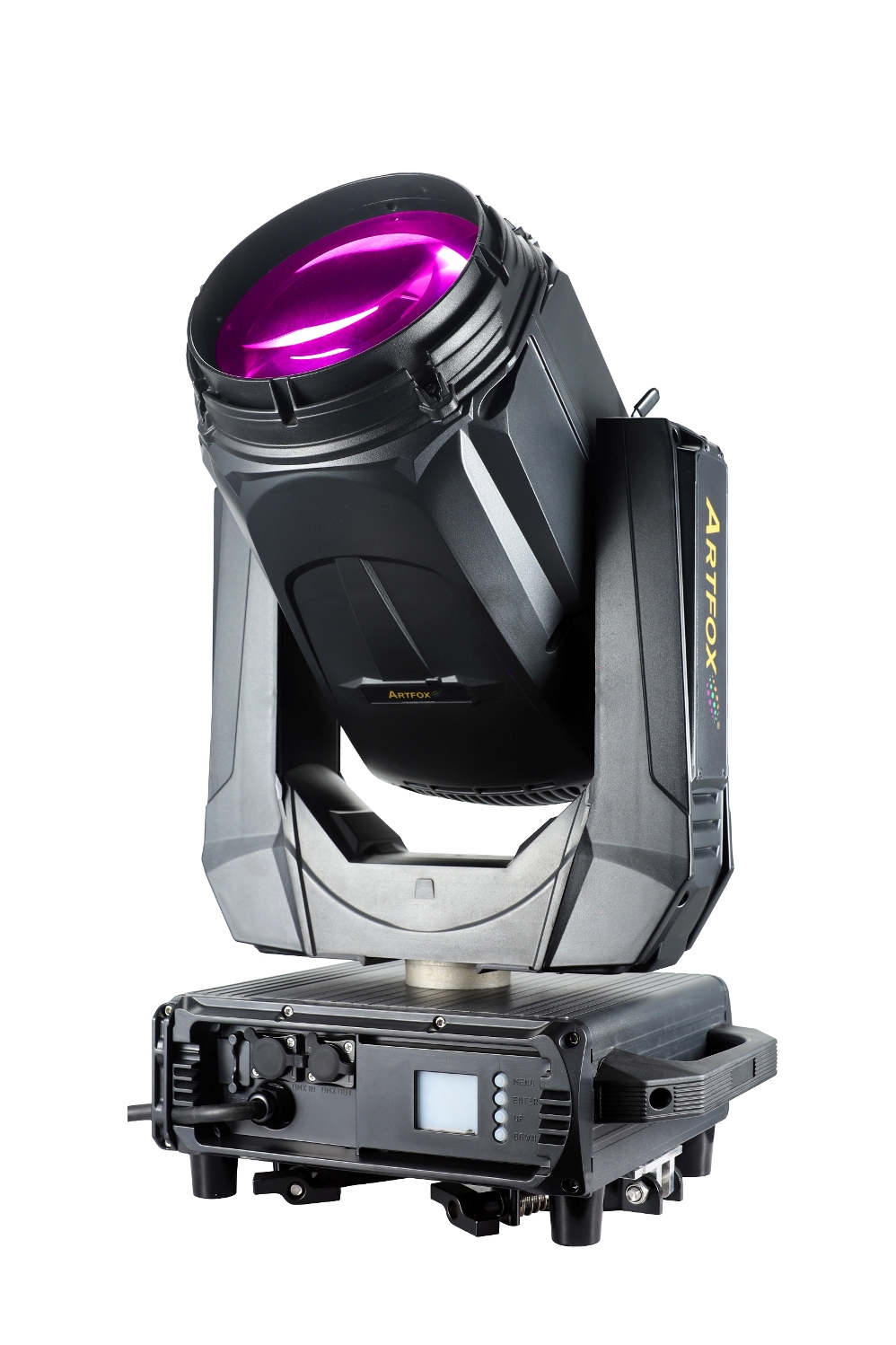

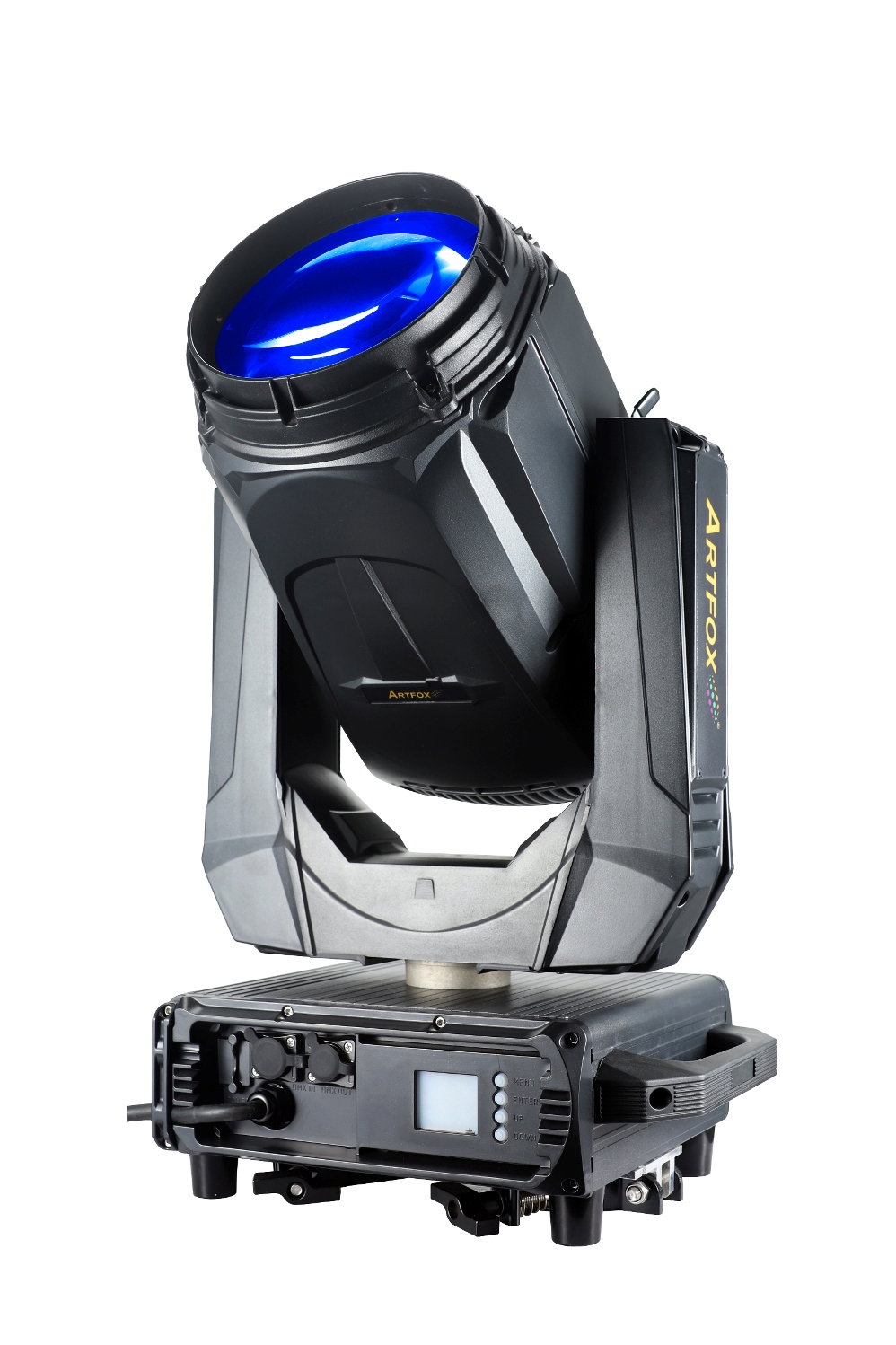

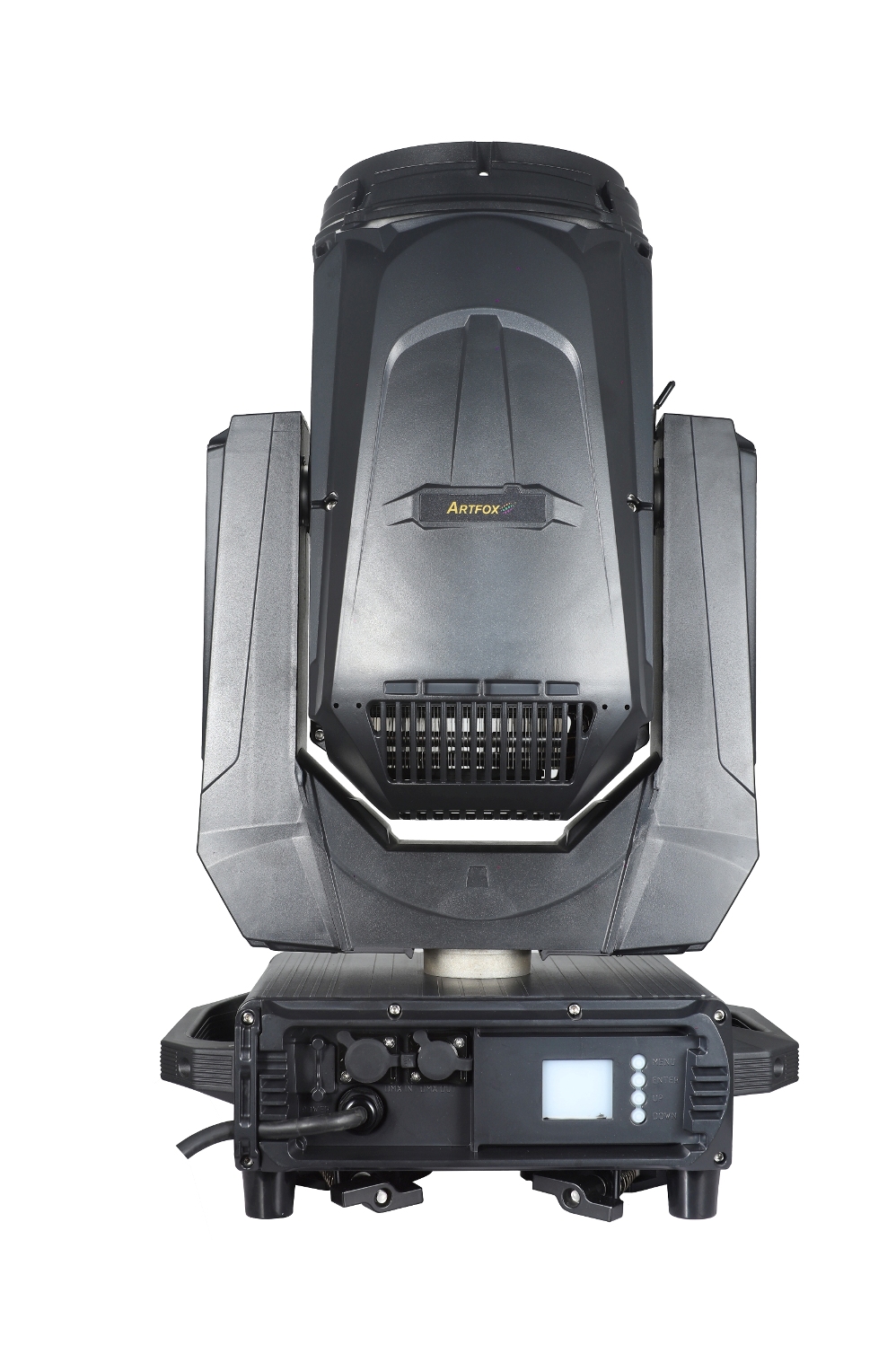

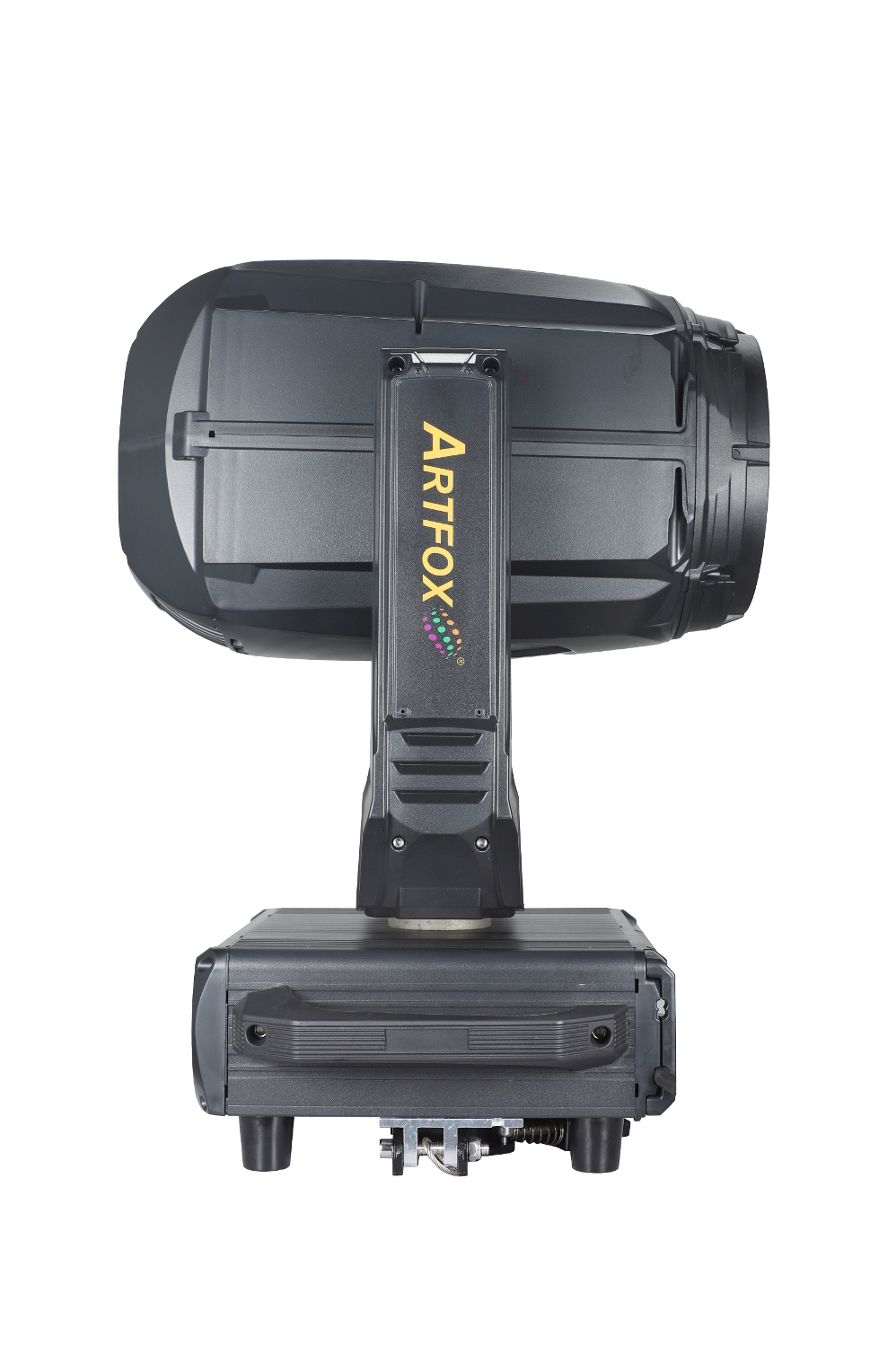

The Outman Beam L260 is a professional IP65 waterproof laser beam moving head, engineered for outdoor concerts, large-scale events, stadium performances, cultural tourism lighting, and high-end stage shows. Built with an IP65 rating, it delivers reliable all-weather performance, resisting rain, dust, and harsh outdoor conditions.

Powered by a 260W laser-based light source with a lifespan of 12,000 hours, it produces an intense, ultra-narrow 0.8° beam with a 9500K cool white color temperature, ensuring long-distance projection and striking visual impact. The advanced color system combines a 16-color wheel with CMYK infinite color mixing, offering vibrant, smooth color transitions for diverse creative lighting designs.

Equipped with a 29-static-gobo wheel (including 6 colorful glass gobos), it features built-in gobo shaking effects for dynamic pattern displays. The multi-prism system integrates rotatable prisms (3-facet, 6+12-facet, 24-facet) and static prisms (8-facet, 8+8+8-facet), paired with an independent frost filter, enabling rich beam splitting, rotation, and soft wash effects.

Designed for precise control, it offers 0–100% mechanical linear dimming and 5–11Hz mechanical strobe for smooth brightness adjustment and dynamic flash effects. The 540° pan / 245° tilt 16-bit precision scanning ensures fast, accurate positioning, while the intelligent temperature-controlled fan optimizes heat dissipation to extend the laser source lifespan. With bilingual LCD display, integrated folding clamp, and pan/tilt lock, it ensures easy operation, stable installation, and safe transportation for professional users.

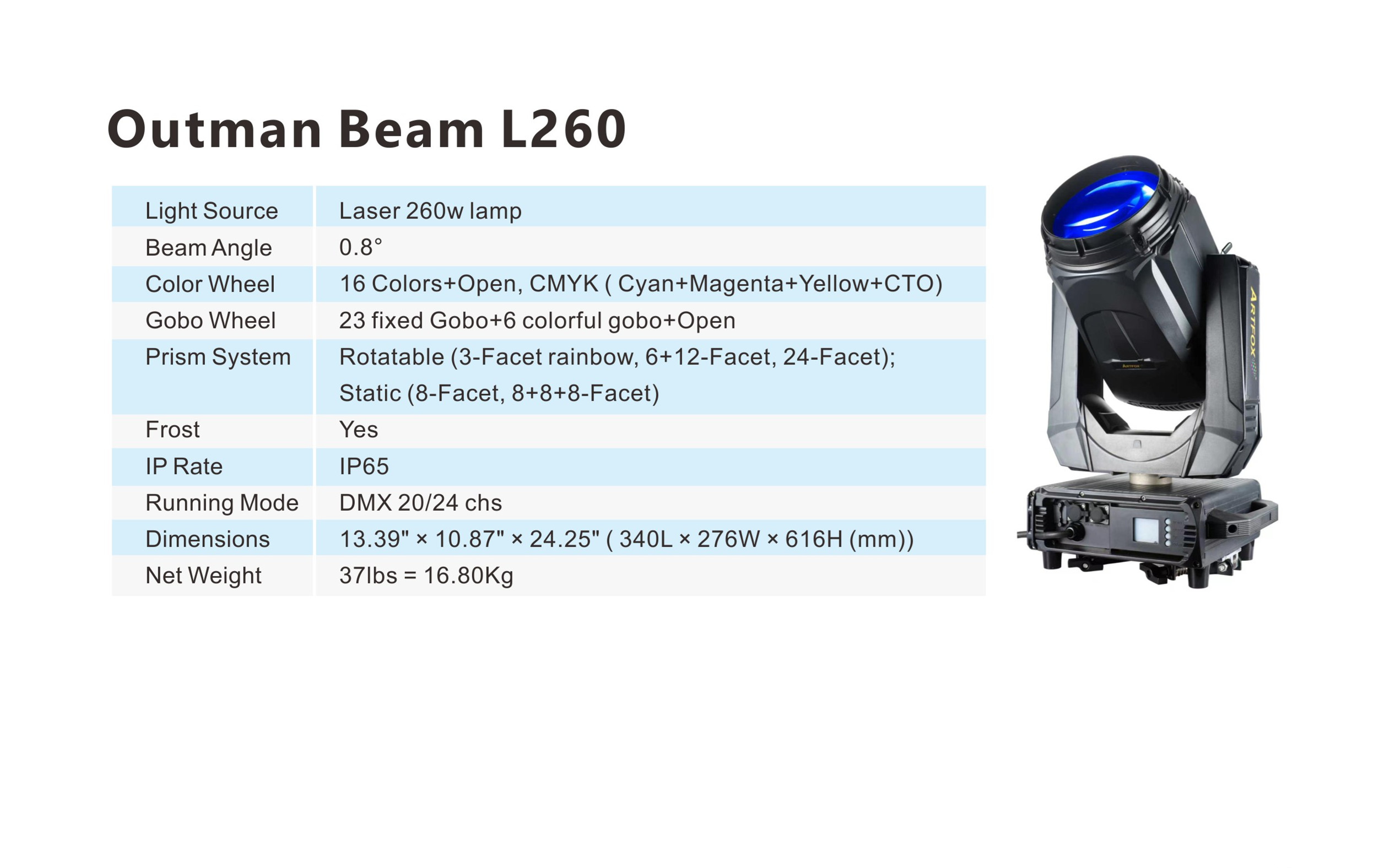

Parameters

• Light Source: 260W Laser-Based Lamp, Lifespan > 12,000 Hours, Color Temperature 9500K


• Input Power: 360W


• Voltage: AC 100～240V, 50/60Hz


• Protection Rating: IP65

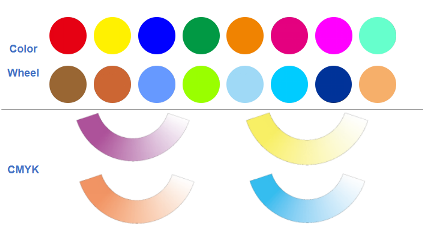

• Color System: 16-Color Wheel + CMYK Color Mixing

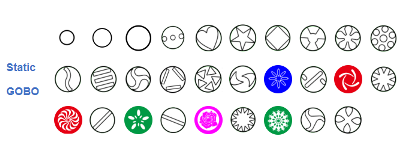

• Gobo Wheel: 29 Static Metal Gobos (6 Colorful Glass Gobos) + Blank + Shaking Effect

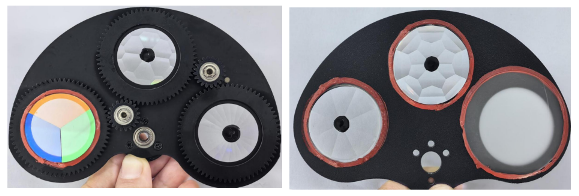

• Prism System: Rotatable (3-Facet, 6+12-Facet, 24-Facet); Static (8-Facet, 8+8+8-Facet)


• Frost: Independent Frost Filter


• Beam Angle: 0.8° Ultra-Narrow Beam


• Focus: Electronic Focus, Projection Distance 2m to Infinity


• Dimmer & Strobe: 0–100% Mechanical Linear Dimmer (16-Bit), 5–11Hz Mechanical Strobe


• Pan/Tilt: Pan 540°, Tilt 245°, 16-Bit Resolution


• DMX Channels: 24 / 20


• Control Protocol: USITT DMX512, RDM Addressing


• Dimensions:13.39” × 10.87” × 24.25” ( 340L × 276W × 616H (mm))


• Net Weight: 37lbs = 16.80Kg
