Description

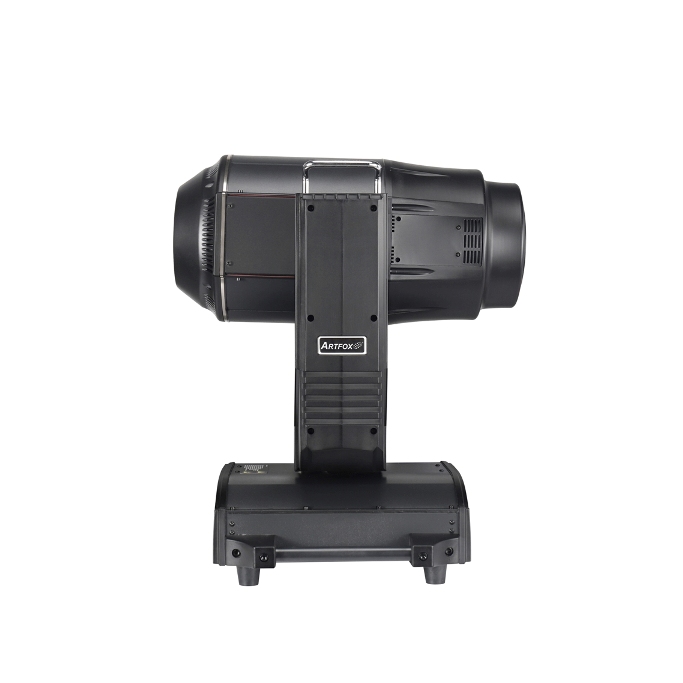

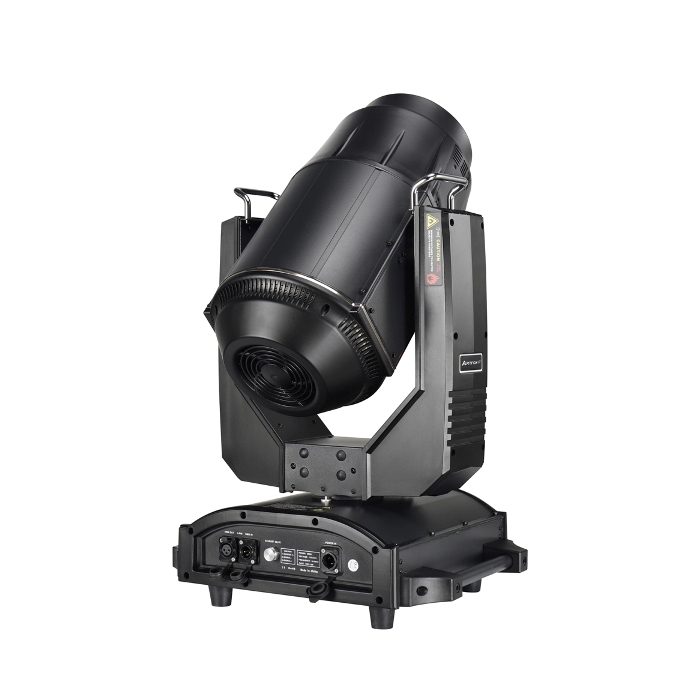

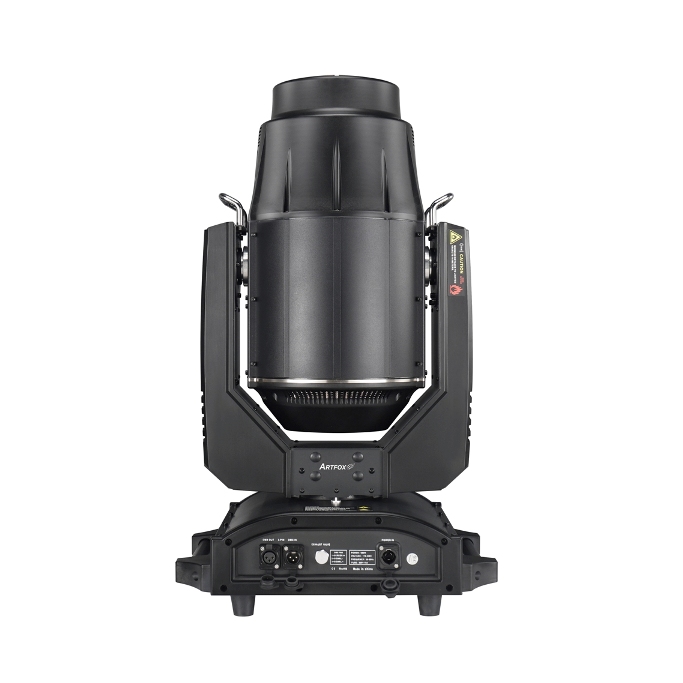

Outman Hybrid is beam spot wash design, it is outdoor IP65 design. Excellent optics features

Parameter
Osram 371w 18R/450w 20R/550w 22R lamp optional, 1,500 hours lifetime lamp
CMY optional
Beam Angle: 2.8°-34°
Linear zoom

Brightness
18R:
20,000 lux at 2.8° at 33ft distance
10,300 lux at 2.8° at 50ft distance

20R:
24,000 lux at 2.8° at 33ft distance
12,600 lux at 2.8° at 50ft distance

22R:
28,000 lux at 2.8° at 33ft distance
15,000 lux at 2.8° at 50ft distance

Two prisms:
8 facet, and 24 facet Circular prism
3 Prims effects

Gobos
3 gobo wheels
15 static gobos + Open
7 Rotating gobos+open
WaterWave gobo+Open

Color
11 Colors + Open
Frost
CMY+CTO coptional


Control
DMX: 18ch/22ch
control mode: dmx, auto-run, sound-active, master/slave
Pan: 540° , Tilt: 270°. 8 bit or 16 bit control

Connection
Outdoor 3-pin DMX in/out, outdoor Ture1 input or power in/out

Power
700 Watt Maximum Power consumption 100-240V AC

Size and weight
69 lbs (31kg) / 18”x 14.3”x 29.6” (446*362*752mm )
