Description

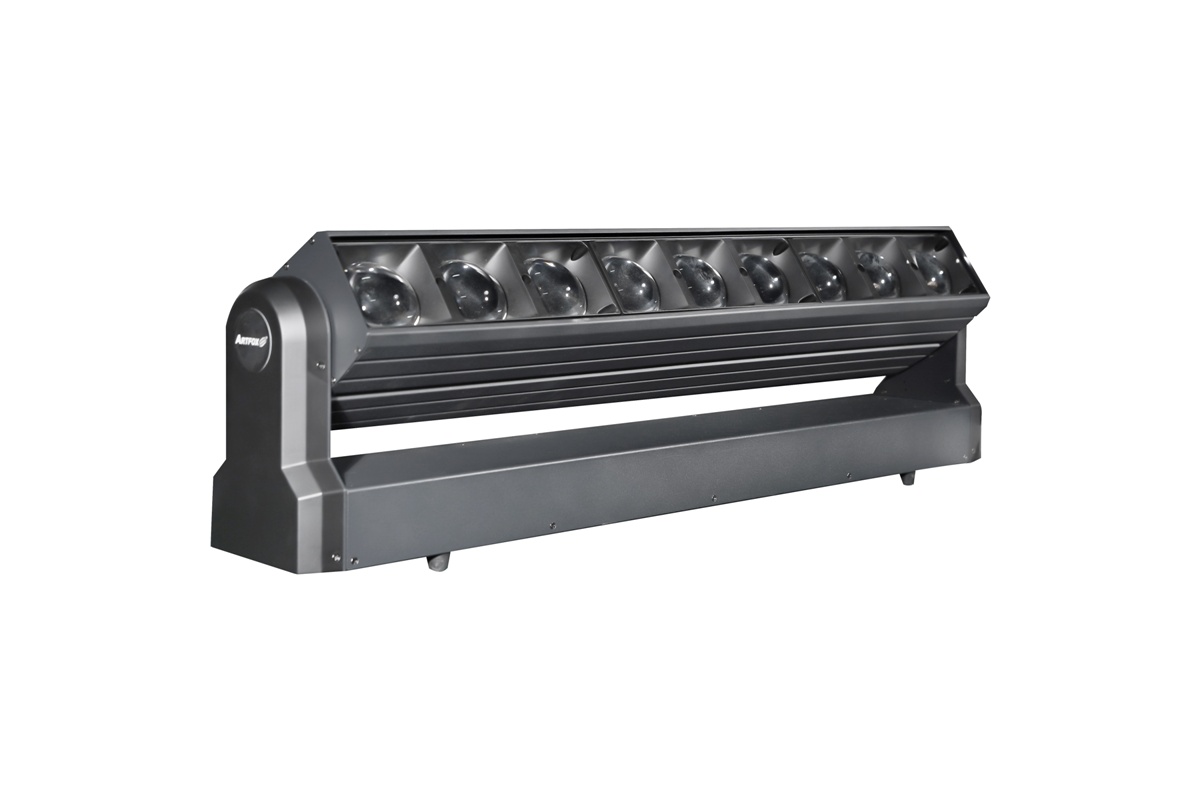

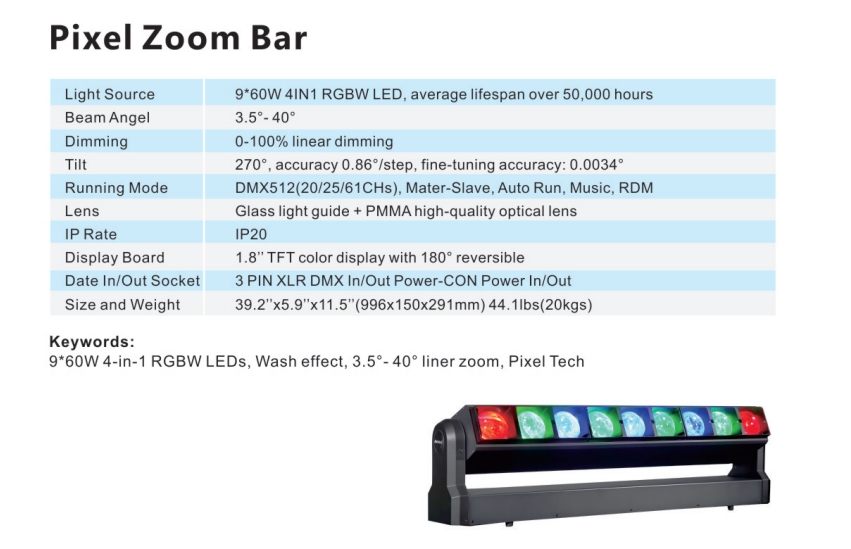

Pixel Zoom Bar is a new pixel bar wash zoom, featuring 9*60W 4-in-1 RGBW LED, motorized 3.5° to 40° zoom and 270° tilt movement, accuracy 0.86°/step, fine-tuning accuracy: 0.0034°, full pixel control.

Features:
9 Pixel Bar Beam Wash with 60W 4-in-1 RGBW LEDs
Motorized 3.5° to 40° Zoom and 270° Tilt Movement
RGBW Color Mixing and Full Pixel Control
0-100% dimming;
Constant current drive mode
High refresh rate , flicker free to TV/ Film Use
DMX512/mater-Slave/Auto Run/Music/RDM
Temperature sensor detection, intelligent adjustment of light source power;
Lamp information query; Intelligent fan speed control

SOURCE:
9*60W 4IN1 RGBW LED, 50,000 Hour Average LED Life*
Glass light guide + PMMA high-quality optical lens

EFFECTS:
Motorized Zoom 3.5° to 40° ,narrow beam to wide wash, and 270° Tilt Movement
RGBW Color Mixing and Full Pixel Control
Built-in Color Presets and Unique Color Macros
Electronic Strobe, 16-bit Variable Dimming Curve Modes

CONTROL / CONNECTIONS:
3 DMX Channel Modes (20/25/61CHS)
DMX512/mater-Slave/Auto Run/Music/RDM
1.8 inch TFT color display with 180° reversible
3pin DMX In/Out, RJ45 Ethernet In/Out (for optional)
Powercon Power In/Out

SIZE / WEIGHT:
39.2’’x5.9’’x11.5’’(996x150x291mm)
44.1lbs(20kgs)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
550W Max Power Consumption
